Safety Lockout Systems: A Practical Guide for Safer Workplaces

Safety Lockout Systems: A Practical Guide for Safer Workplaces

by Active Safety

Safety lockout systems are one of the most effective ways to prevent accidental energisation, equipment start-up, and hazardous releases during maintenance or servicing. When implemented correctly, they protect workers from serious injury and help organisations meet legal obligations under workplace health and safety (WHS) regulations.

This guide explains what safety lockout systems are, why they matter, and how to implement them effectively across your site.

What Safety Lockout Systems Are

A safety lockout system is a coordinated set of hardware, procedures, and identification tools used to isolate energy sources and ensure machinery cannot be operated until it is safe to do so.

A collage of safety lockout products including lockout tags, padlock stations and lockout hasps.


Why Lockout Systems Matter

  • Meeting WHS obligations:
    Lockout/tagout (LOTO) is a fundamental part of WHS compliance programs. A documented isolation procedure demonstrates due diligence and reduces organisational risk.
  • Preventing accidental energisation:
    Unexpected startup is one of the most common causes of serious workplace injuries. Lockout systems physically prevent machinery from being reactivated while someone is working on it.
  • Supporting multi-worker coordination:
    Many maintenance tasks involve multiple technicians. Multi-point lockout devices, hasps, and group lock boxes ensure every worker maintains personal control over their own safety.
  • Reducing downtime and confusion:
    Clear identification - such as colour-coded and engraved padlocks, and isolation point labelling - helps teams quickly understand the status of equipment and reduces the chance of errors.



Key Hardware Components of an Effective Lockout System

1. Safety Padlocks

Choosing the right padlock for the job - including material, keying system, and identification options - is essential.

Master Lock Safety Padlocks come with built-in safety features, including:

  • Over 100,000 key combinations to minimise duplication
  • Controlled keyway: additional keys can only be cut through Master Lock, preventing unauthorised access
  • Key-retaining cylinder: key cannot be removed until the shackle is properly closed, ensuring locks are correctly applied
An assortment of Master Lock Safety Padlocks in a range of colours

2. Isolation Hardware

Different hazards require specific lockout devices:

  • Electrical: breakers, switches, plugs
  • Valves: ball, gate, butterfly, pneumatic
  • Hasps and group lockboxes: for multi-person lockouts
  • Cable lockout devices: for irregular isolations or multiple points

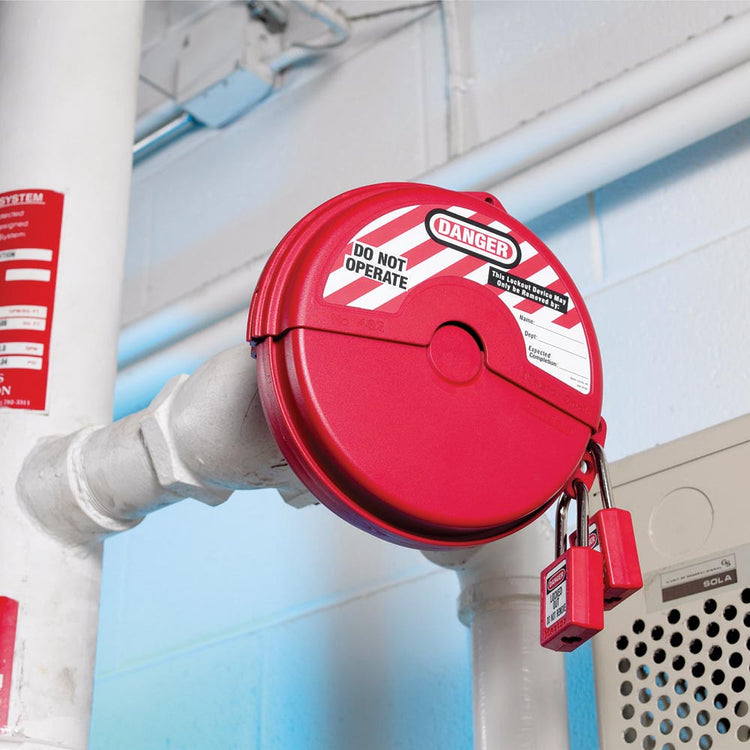

A master lock valve lockout system



3. Tags and Identification

Lockout Tags provide essential information, including:

  • Who applied the lock
  • When it was applied
  • Reason for isolation
  • Expected completion time
  • Contact details
Two images of lockout hasps and safety lockout tags being used in a workplace evironment.

4. Lockout Stations and Kits

Centralised storage ensures equipment is easy to find and reduces the risk of missing components. Lockout Stations can be wall-mounted or portable depending on site layout.

A master lock lockout station and safety lock box.

Implementing a Lockout System in Your Workplace

Step 1: Conduct a Site Assessment

Identify all energy sources, isolation points, and equipment requiring lockout capability.



Step 2: Develop Written Procedures

Robust procedures should include:

  • Purpose & Scope
  • Roles & Responsibilities
  • Hazard Identification & Risk Assessment
  • Documented Isolation Procedures
  • Energy Isolation & Dissipation
  • Locking & Tagging Requirements
  • Group Lockout Procedures
  • Testing & Verification
  • Communication Protocols
  • Removal of Lockout
  • Training & Competency
  • Audit & Continuous Improvement
  • Compliance & Record Keeping

To simplify LOTO and ensure accuracy, machine-specific SOPs with step-by-step breakdowns supported by photos are highly effective. Include:

  • Shutdown steps
  • Isolation points
  • Verification methods
  • Restart procedures



Step 3: Train Your Team

Training should cover:

  • Initial Training
  • Refresher Training
  • Role-Specific Competency Requirements
  • Contractor Induction Requirements



Step 4: Equip Your Site

Provide the correct hardware for each type of isolation, considering:

  • Industry-specific requirements (mining, utilities, manufacturing, etc.)
  • Environmental conditions (heat, moisture, chemicals)
  • Visibility & identification (colour coding, engraved locks, labelled isolation points)
  • Scalability & standardisation for multi-site consistency



Step 5: Audit and Improve

Regular audits ensure LOTO procedures are correctly followed and all hardware remains in good condition. Audits should:

  • Inspect locks, tags, and devices
  • Confirm procedures reflect current equipment
  • Identify gaps in training or non-compliance
  • Capture employee feedback
  • Implement corrective actions for continuous improvement



Bringing It All Together

A well-designed safety lockout system is more than just a set of padlocks - it is a structured approach to controlling hazardous energy and protecting workers. By combining the right hardware, clear identification, and robust procedures, organisations can significantly reduce risk and strengthen safety culture.

For a full range of workplace safety lockout systems, including padlocks, hasps, lockout stations and trapped key solutions, see our Safety Lockout Systems & Security collection. For a customised solution unique to your workplace, contact our team for expert help.
